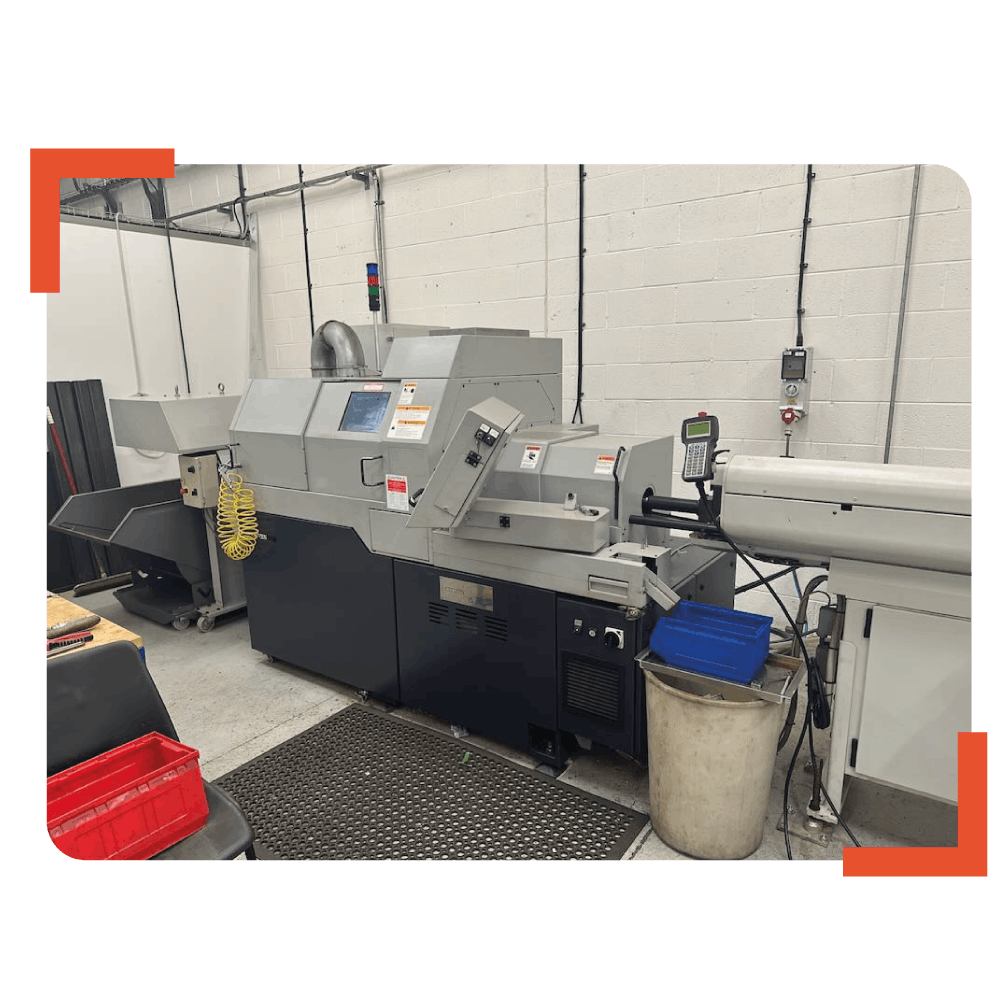

Citizen L520 Sliding Head Lathe (2004)
Opportunity to purchase a Citizen L520 Sliding Head Lathe (2004). This is available to purchase immediately. View under power by appointment only.
Send Inquiry
1 / 0
Summary
This Citizen L520 Sliding Head Lathe (2004) is available to purchase Immediately. All viewings are by appointment only.
Location: Burton on Trent
Specifications
- Max. Machining Diameter:
20mm
- Max. Machining Length:
200mm
- Max Front Drilling Diameter:
10mm
- Max Front Tapping:
M6
- Spindle Through Hole Diameter:
24mm
- Max Front Spindle Speed:
10,000rpm
- Max Back Spindle Drilling:
8mm diameter
- Max Back Spindle Tapping:
M6
- Max Back Spindle Speed:
8,000rpm
- Main Spindle C Axis:
0.001 Degrees
- Max chuck diameter of the back spindle:
20mm
- Max Workpiece protrusion length from the back spindle:
30mm
- Max Back Spindle Speed:
8,000 Rpm
- Rotary Tools On Gear Post Maximum Drilling:
7mm Diameter
- Rapid Feed Rates (All Axes):
20m/min
- Axis Travel:
X1 Axis: 45.5mm
Y1 Axis: 294mm
Z1 Axis: 2055mm
X2 Axis: 316mm
Z2 Axis: 180mm
- Main and back spindle Indexing:
0.1 degrees
- Main and back spindle 'C' Indexing:
0.001 degrees
- Bar Feeder Length:
4270mm
- Center Height:
1,050mm
- Year:
2004
