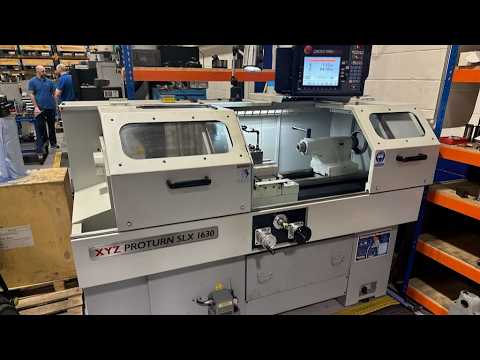

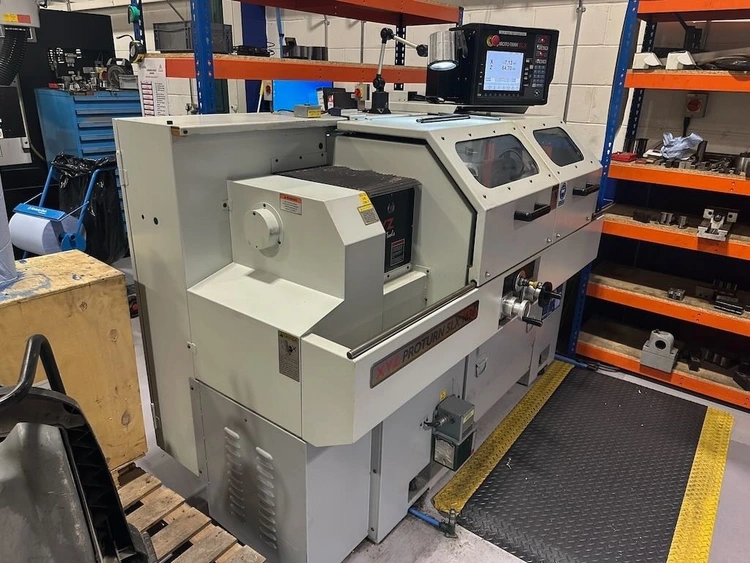

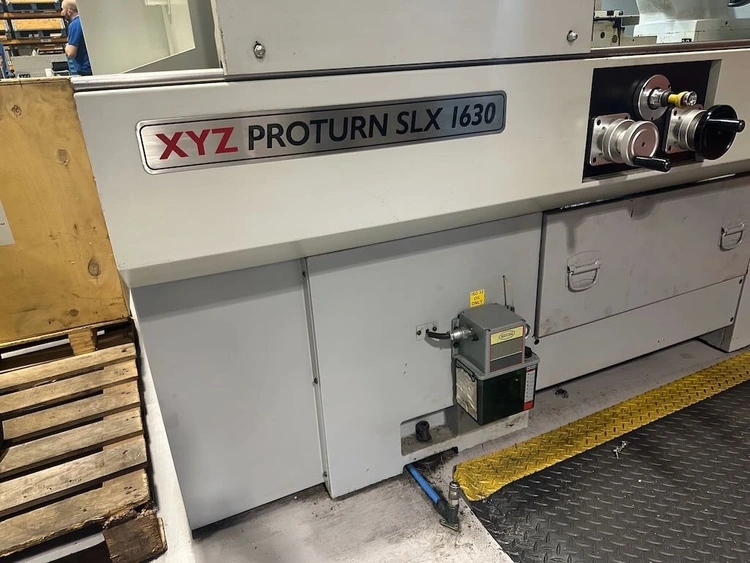

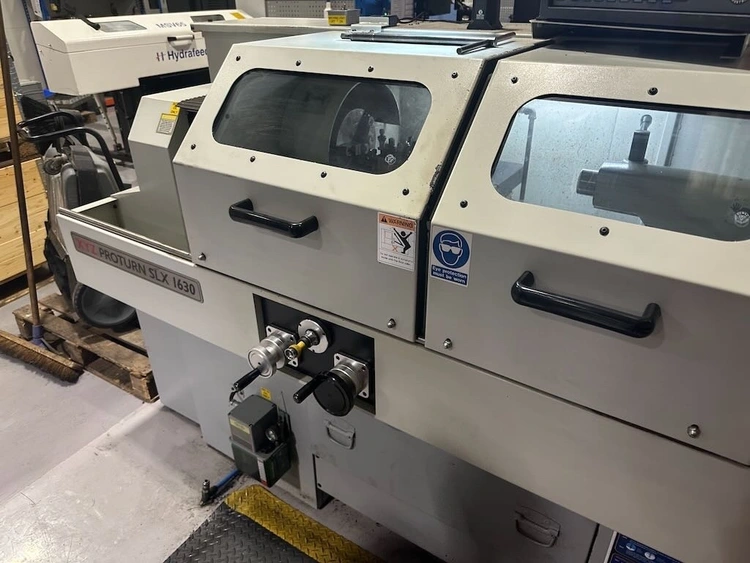

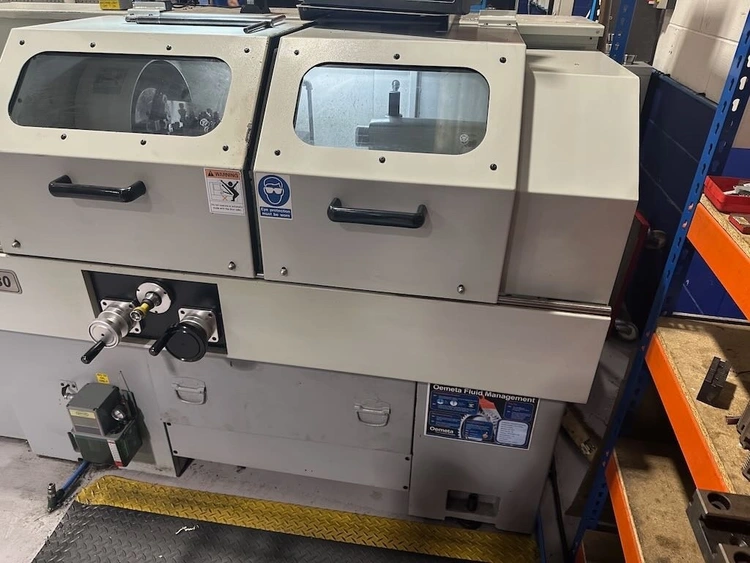

USED 2014 XYZ Proturn SLX 1630 with Tooling Package

Send Inquiry

Overview

Type
CNC Lathes
Manufacturer
XYZ
Model
Proturn SLX 1630
Year
2014
Status
for sale

Description

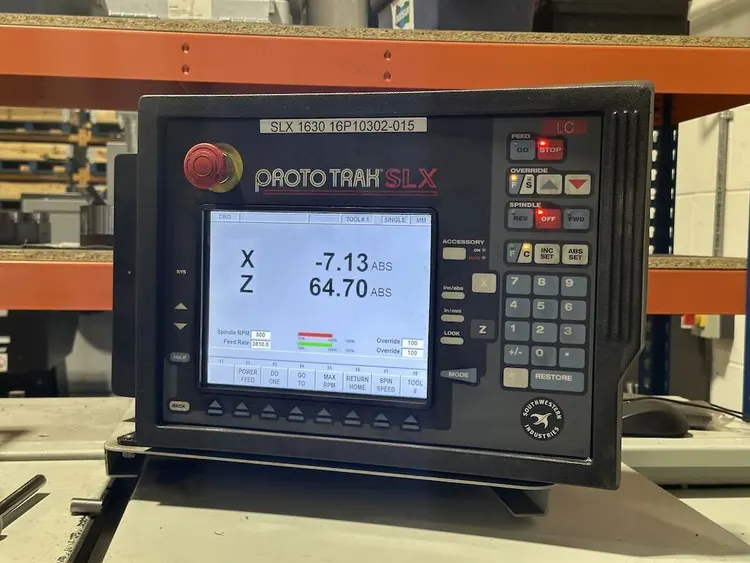

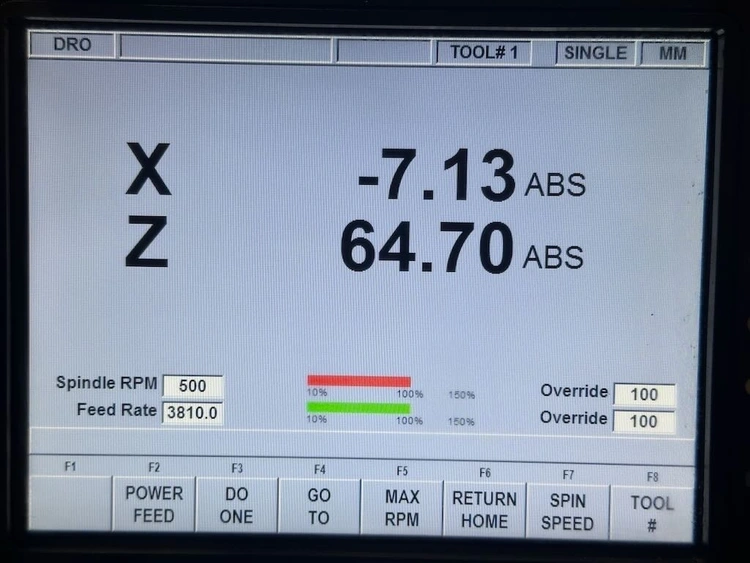

This XYZ Proturn SLX 1630 versatile 2-axis CNC / conversational lathe is in good working order and can be viewed under power. It's designed for both one-off and small batch production. Equipped with the ProtoTRAK SLX control, the machine offers simple programming, high accuracy and excellent reliability for general engineering applications.

Specifications

Swing15.7"
Machining Length30"
# Axis2
Bar Capacity2.13"
Power7.5hp
Max RPM2500rpm
Turning Dia11.81"
TailstockYes
ControlCNC (SLX)
Dimensions 82x39x71 inches "
Weight1550kg

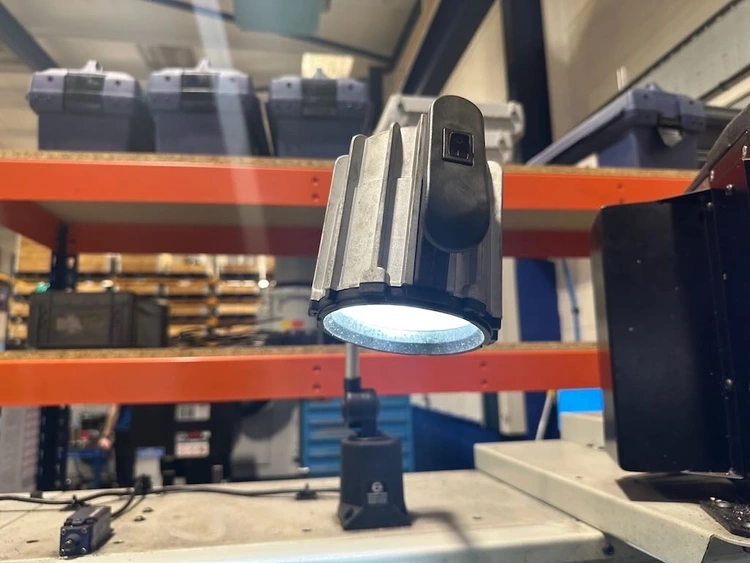

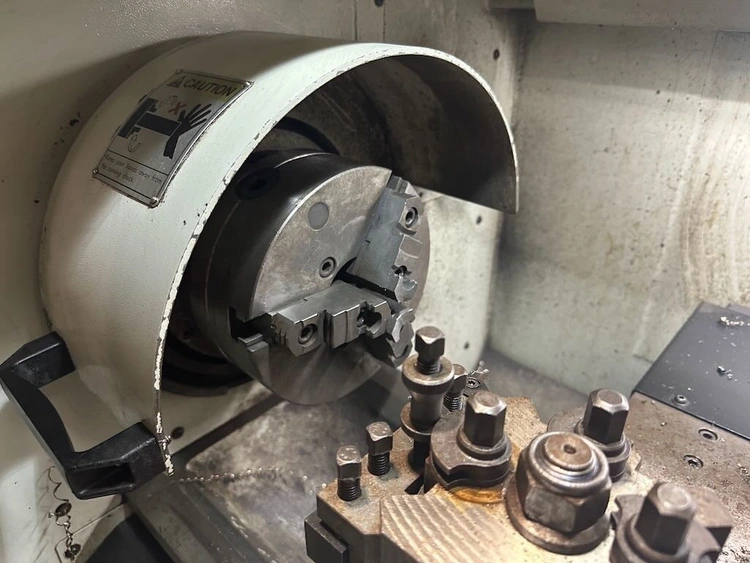

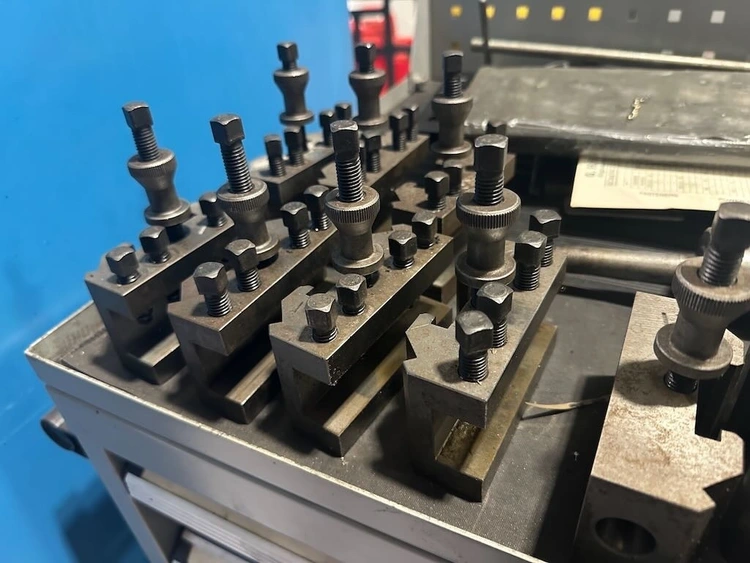

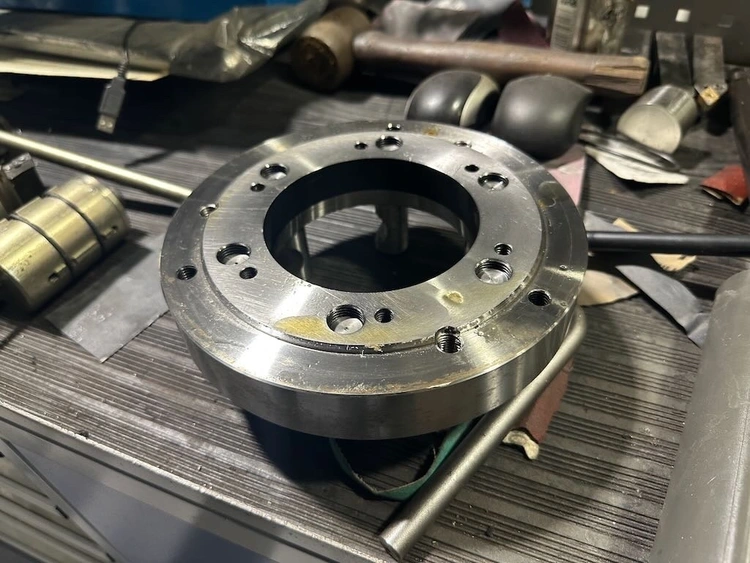

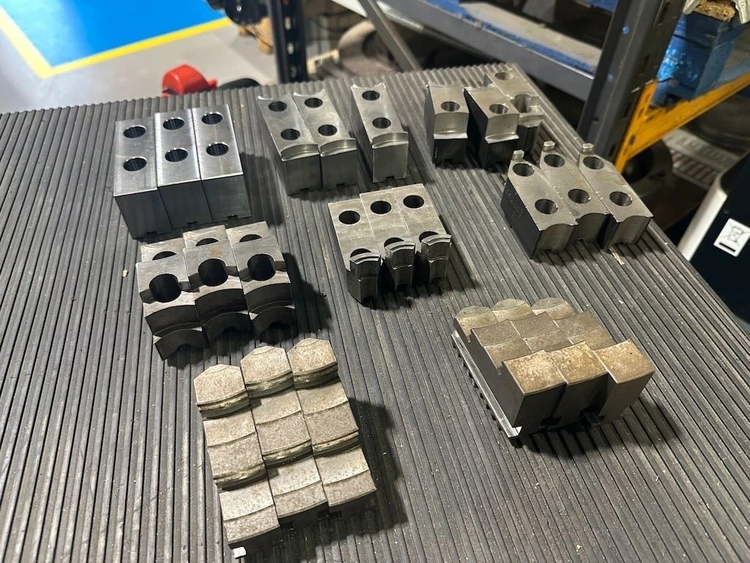

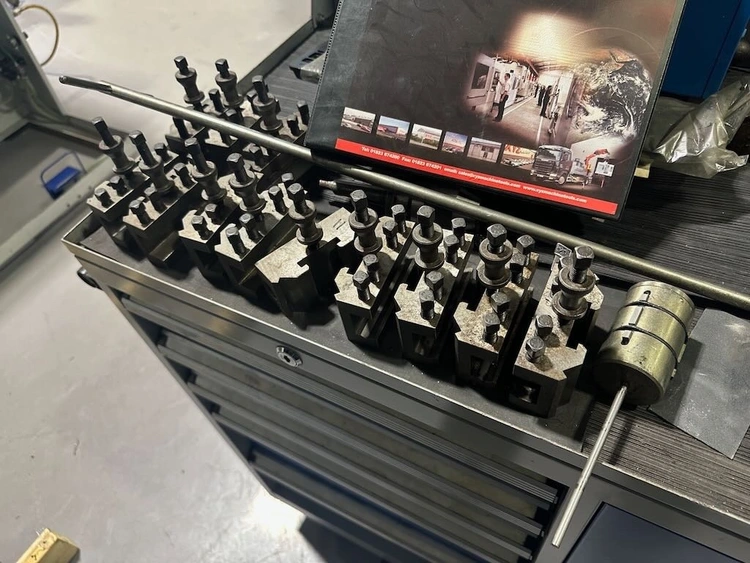

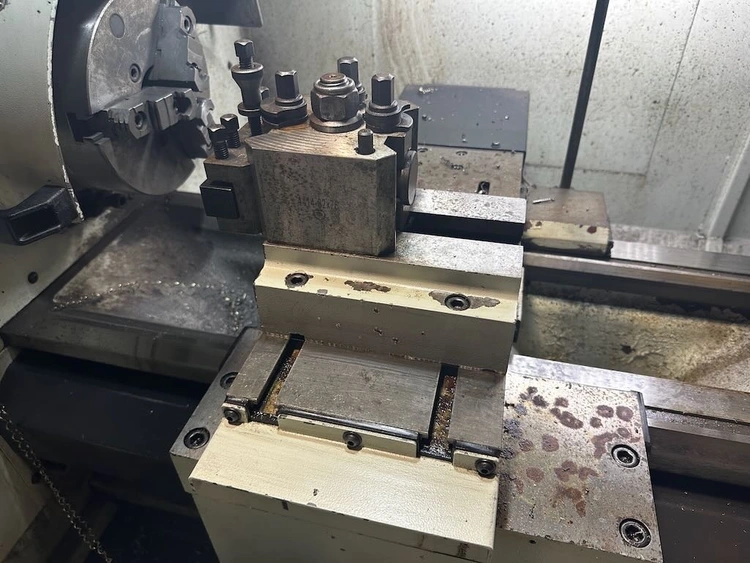

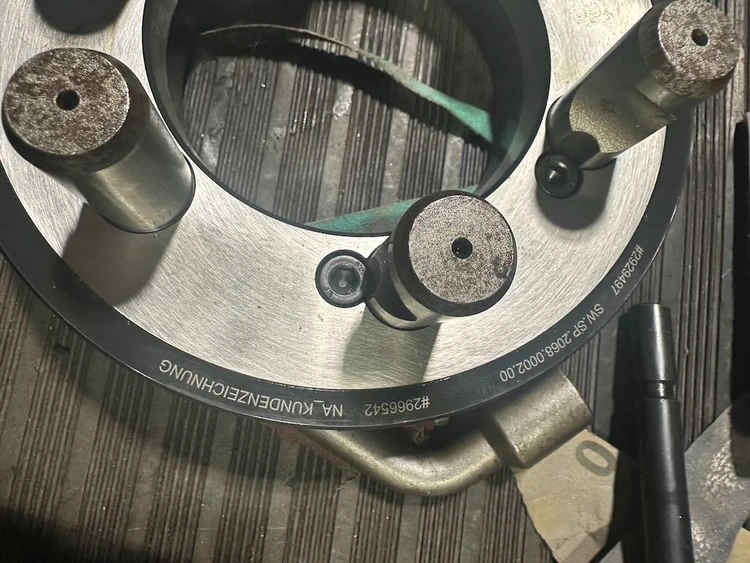

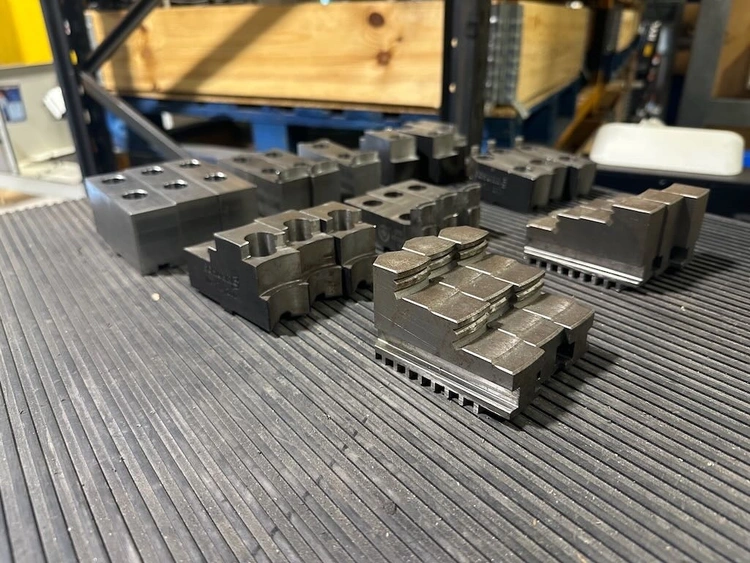

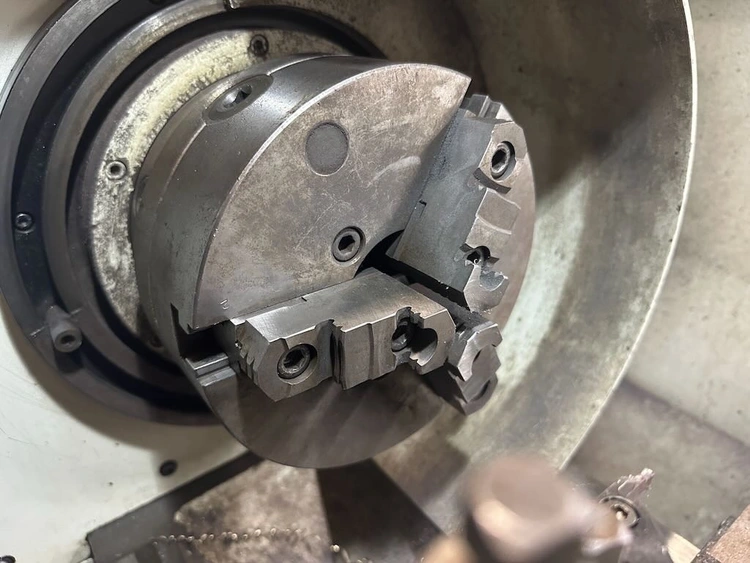

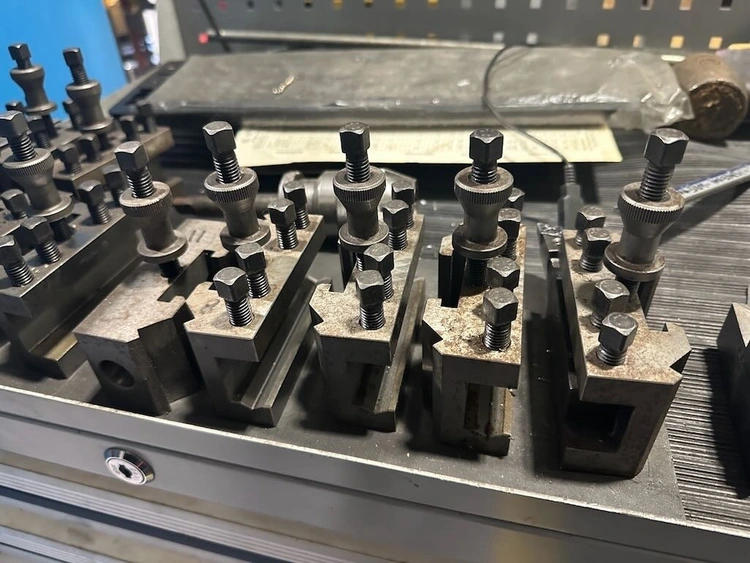

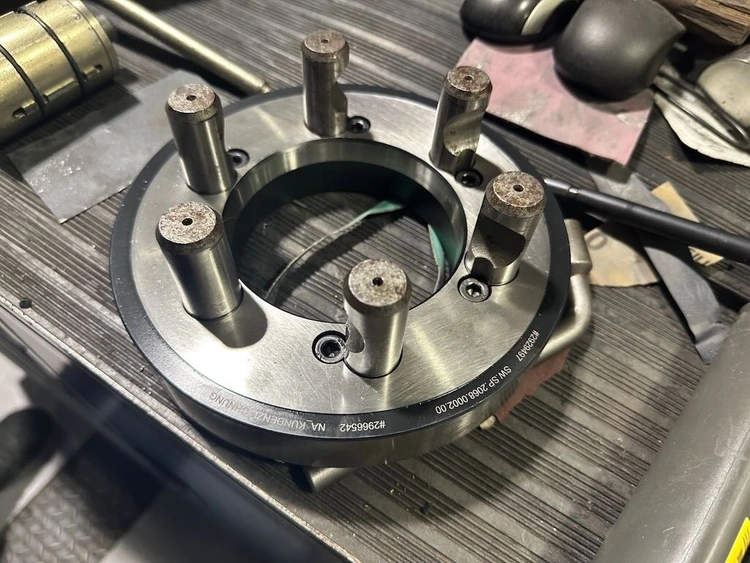

The XYZ Proturn SLX 1630 is a versatile 2-axis CNC / conversational lathe designed for both one-off and small batch production. Equipped with the ProtoTRAK SLX control, the machine offers simple programming, high accuracy and excellent reliability for general engineering applications. Specifications Specification Details Control ProtoTRAK SLX CNC conversational control Swing over bed 400 mm (15.7") Swing over cross slide ≈216 mm (8.5") Distance between centres 760 mm (30") Maximum turning diameter ≈300 mm Spindle bore 54 mm Spindle nose D1-6 Camlock Spindle speed range 150 – 2500 rpm Spindle motor 5.75 kW (7.5 hp) X-axis travel ≈216 mm Z-axis travel 760 mm Tailstock taper MT4 Tailstock quill travel 127 mm Tool size capacity 20 mm square tooling Machine dimensions Specification Value Length ≈2080 mm Width ≈1000 mm Height ≈1800 mm Weight ≈1500–1550 kg Standard equipment ProtoTRAK SLX CNC conversational control 3-jaw chuck Quick-change toolpost with tool holders Coolant system Automatic lubrication Tailstock Worklight and chuck guard Accessories included: 13 x Quickchange Tool Holders, Hard Internal and External Jaws, Selection of soft jaws, Collect Chuck Back Plate adapter, Manuals, Tool Box with Touch Up Paint.
